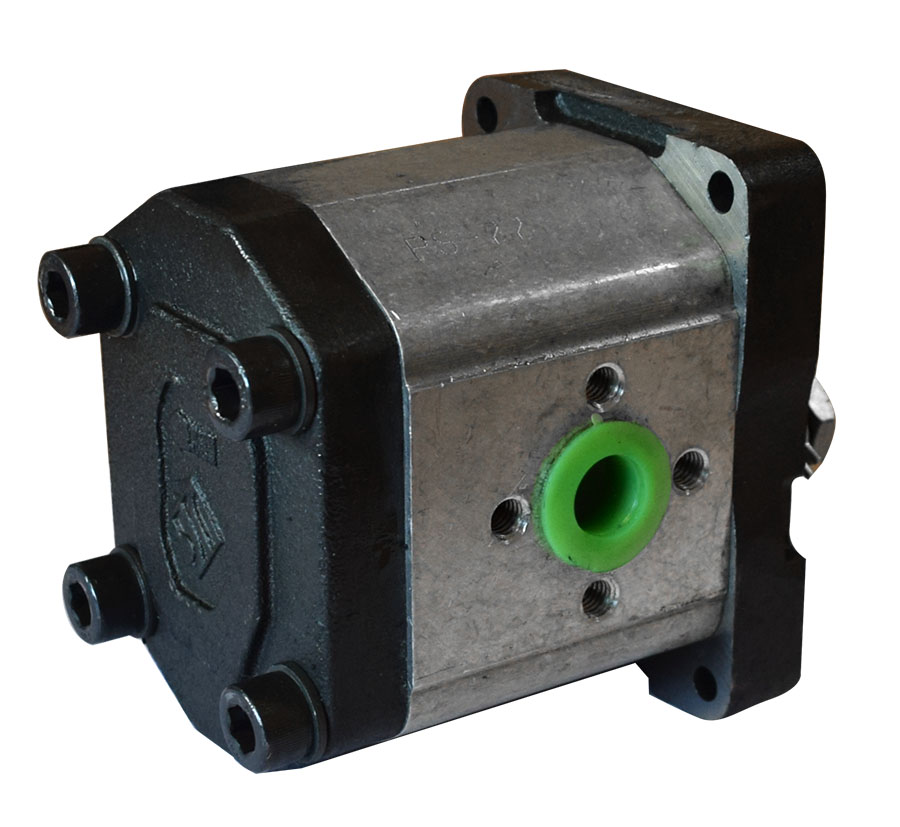

Pompe hydraulique

Info:

Front inlet hole fixing hole size:M8Front inlet hole fixing hole spacing: 40
Front inlet hole size: 20
Front outlet hole fixing hole size: M6
Front outlet hole fixing hole spacing: 30.2
Front outlet hole size: 13.5
Engine Displacement: 14.35 cc
Running Pressure: 210 bar
Speed at Max Working Pressure: 3000 RPM
Temperature Range: -20°C to +110°C
Pump rotation: Anti-Clockwise
Pump type: Single Pump



42 L

7761 Hydraulic Pump 42 Ltr Fiat 70 - 110 90 Also fits Case JX LH Rotation *** Seal Kit 7859*** Hydraulic Pump hydraulic pump new holland hydraulic pump fiat hydraulic pump case ford 7761 | 84530156 | S.62215 | S62215 | VPK1035 | 69/565-84 | 05129488 | 87716629 | 1909916 | 1930226 | 5113283 | 5120850 | 5129488 | 5169770 | 5179714 | 9967927 | 5179719 | PRD22175 | 356740M91 | 8273957 | 8280131 | 5129483 | |356740M91 | 5113283 | 8273957 | 8280131 | 9967927 | 0510725331 | 0510625362 | 1909916 | 1930226 |5120850 | 5129488 | 5169770 | 5179714

Ford New Holland
30 Series
4030, 3830, 4230, 4430

Fiat
66 Series
60-66, 65-66, 70-66, 80-66, 55-66

90 Series
100-90, 110-90, 65-90, 70-90, 80-90, 85-90, 90-90, 60-90, 115-90, 130-90, 180-90, 140-90, 160-90, 95-90

93 Series
60-93, 65-93, 72-93, 82-93

94 Series
60-94, 65-94, 72-94, 82-94, 88-94

Classique Series
1880, 466, 566, 580, 666, 680, 766, 780, 980, 1180, 1580, 880, 880-5, 1280, 1000, 1380

Case IHC
JX Series
JX60, JX70, JX80, JX90, JX95

AVJ Series
AVJ55, AVJ60, AVJ70

VJ Series
VJ60, VJ70, VJ80

Universal
300 Series
353

400 Series
453

500 Series
533, 553

600 Series
643, 683

700 Series
703
